Description
Specification:
– Display: 1.8 inch TFT Screen, Color Screen
– Diode Range: lower than 4.5V
– Zener Diode:Transistor Detect Area: 0.01-4.5V
– Zener Diode Detect Area: 0.01-30V
– Triac Range: IGT lower than 6mA
– Capacitance: 25pF-100mF
– Resistor: 0.01-50MΩ
– Inductance: 0.01mH-20H
– Power Voltage: 3.7V

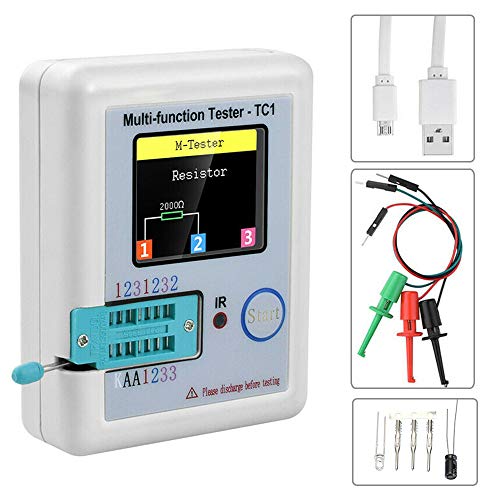

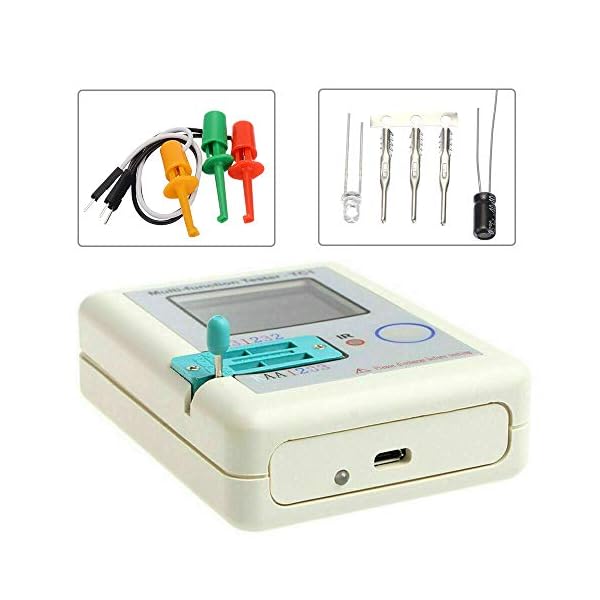

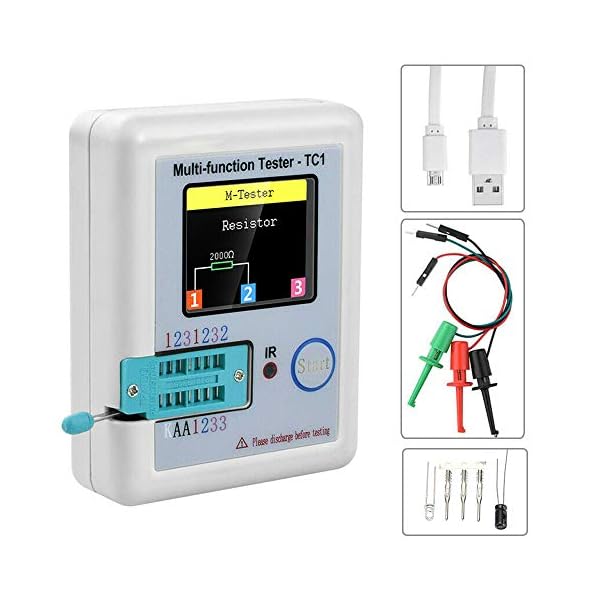

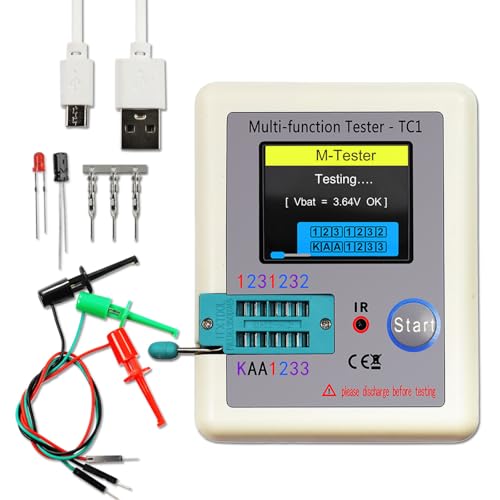

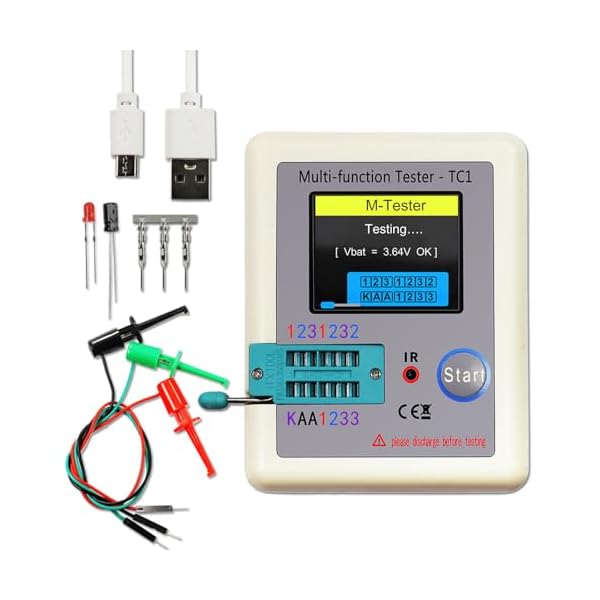

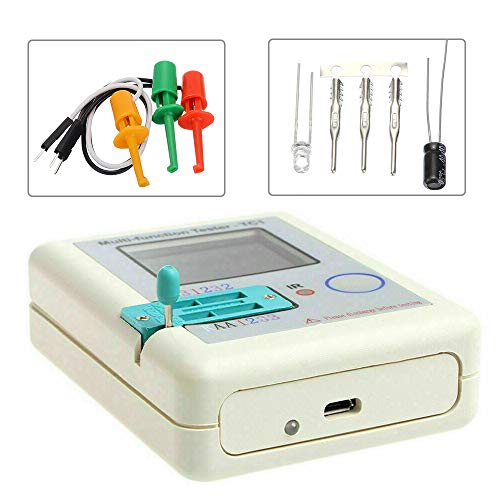

Package Included:
1 *LCR-TC1 Tester
1 * USB Cable
1 * Test Clip
1 * Capacitance
1 * Resistance

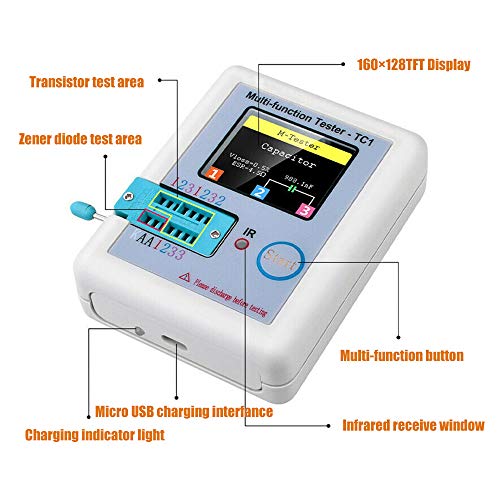

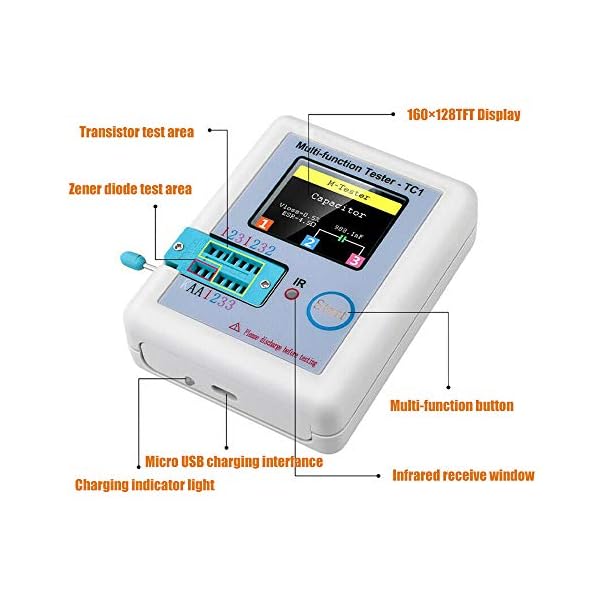

LCR-TC1 Multi-Function Capacitance Resistance ESR Tester: Can measure three tube, two tube, resistance, capacitance, inductance, thyristor, field effect tube, voltage regulator, double two tube, light emitting two tube, infrared decoding
Add IR Decoder: After the component detection is completed, the infrared remote keep an eye on at the tester “IR” test hole, press the remote keep an eye on key, the tester will likely be display the user code & data code and the corresponding infrared waveform after the successful decoding

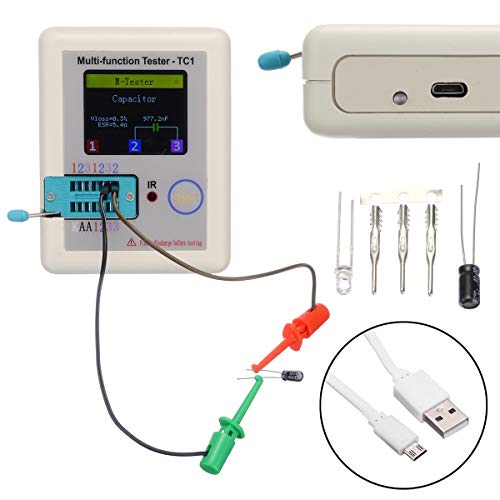

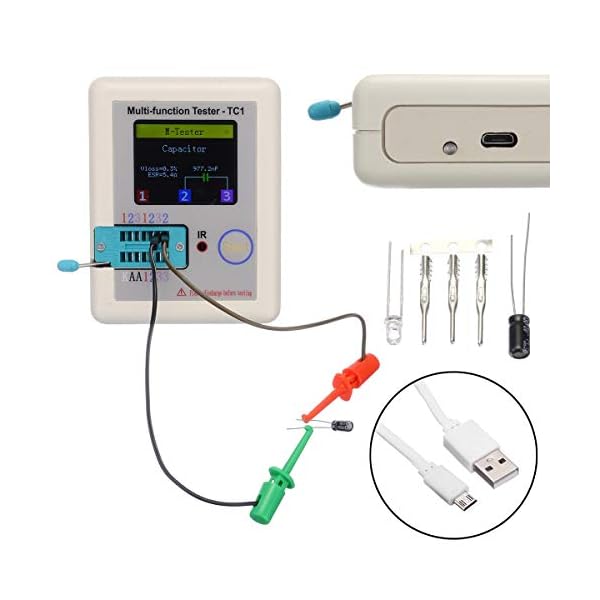

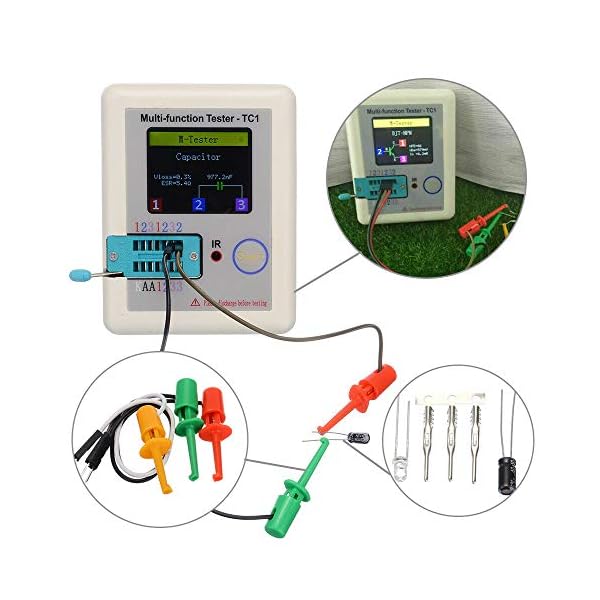

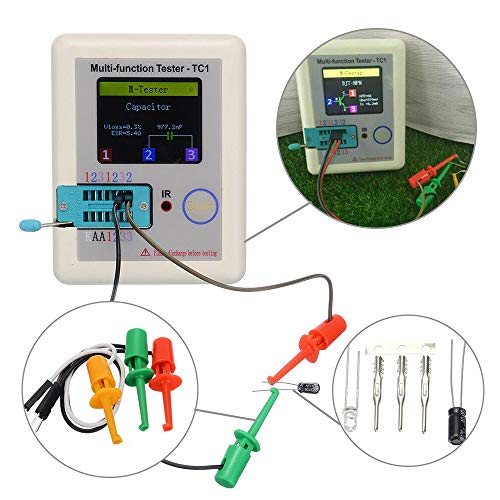

Put the pins of component in corresponding area, then dial the little deal with and the detector will test it robotically, in any case the results will display at the back light TFT screen clearly
Auto shut-down Function: Our advanced electronic transistor tester owns auto shut-down function.Convenient and practical
One button operation, robotically detect and shutdown, and you’ll be able to also press the multi-functional button to near the detector
